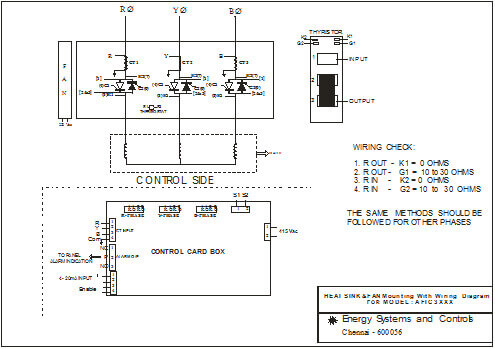

This above schematic shows the wiring diagram of Type - I model.

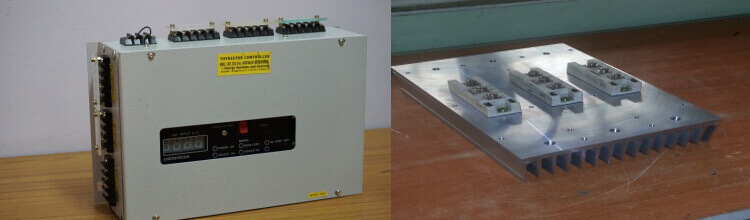

i.e. Control card with metal box one unit and Thyristor modules are mounted on one Heat sink stack is another unit. The control wiring would be done at customer end.

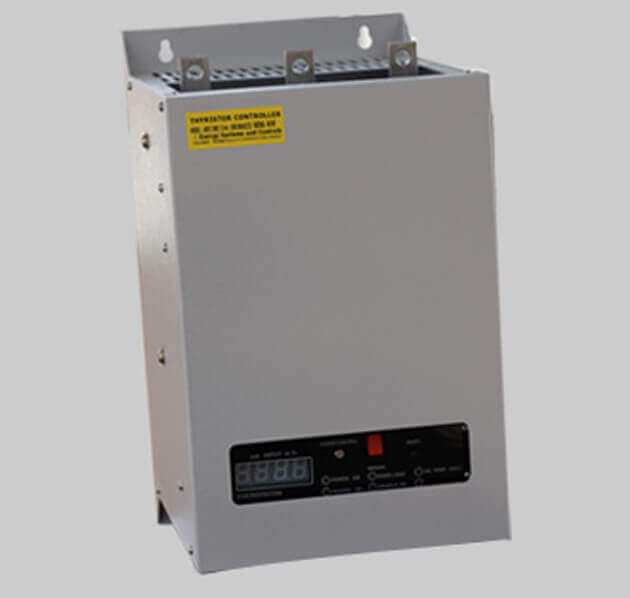

| Control card Box Size | 320(w) X 200(h) X 100 (d) |
| Heat sink stack | 126 X 300 X 170 for AFIC 3162 |
| Heat sink stack | 390 X 300 X 170 for AFIC 3250 |
| AFIC 3106 Size | 350(H) X 220(W) X 250(D) |

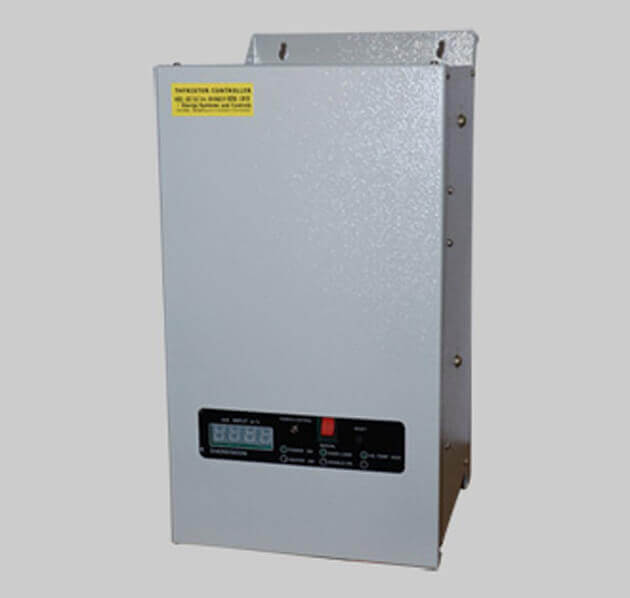

| AFIC 3162 Size | 420(H) X 220(W) X 250(D) |

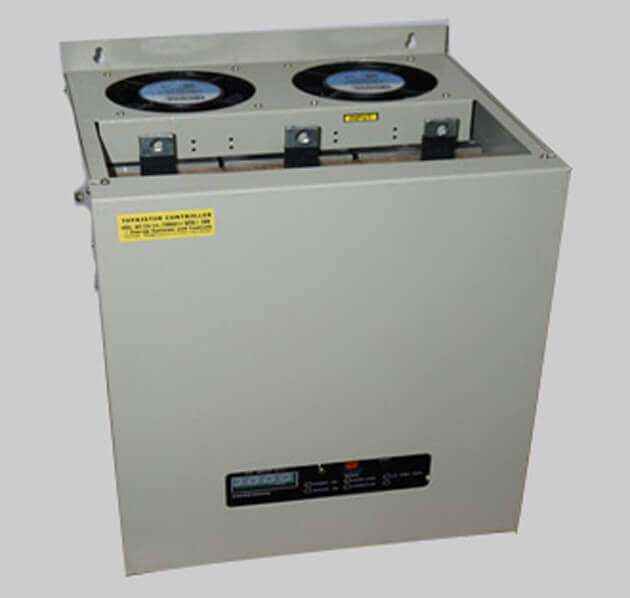

| AFIC 3250 Size | 450(H) X 330(W) X 310(D) |
Mode of Operations: AUTO/MANUAL
| ANALOG FURNACE | POWER INPUT | CONTROLLES |
|---|---|---|
| AFIC 3058 | 3 Ø capacity | UPTO 33 KW |
| AFIC 3106 | 3 Ø capacity | UPTO 60 KW |
| AFIC 3162 | 3 Ø capacity | UPTO 100 KW |
| AFIC 3250 | 3 Ø capacity | UPTO 150 KW |
| AFIC 3330 | 3 Ø capacity | UPTO 197 KW |
| ANALOG FURNACE | POWER INPUT | CONTROLLES |
|---|---|---|

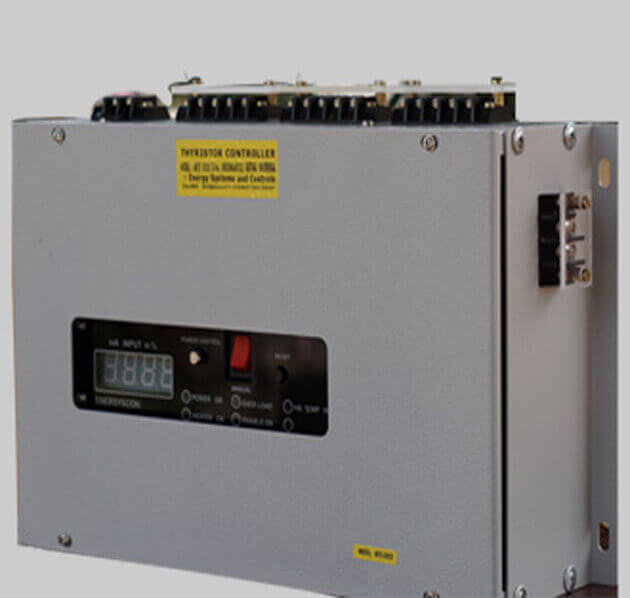

| AFIC 3XXX | 3 Ø capacity | UNIVERSAL |
Silicon Controlled Rectifier (SCR) power controls are great step of power control that have a minimal maintenance costs that if properly maintained could last for many years to come. The advantages of SCR power controls including precise control of the heating process, extended heater life, improved product quality at faster production speeds, and all while reducing the maintenance costs.
"Equipment manufacturers and maintenance engineers need a reliable, flexible approach to controlling electric-heating processes in today's competitive, cost-conscious industrial environment. SCR (silicon controlled rectifier) power control offers advantages including precise control of the heating process, extended heater life, improved product quality at faster production speeds and reduced maintenance costs. Proper selection of an SCR power control can result in many years of reliable service.
